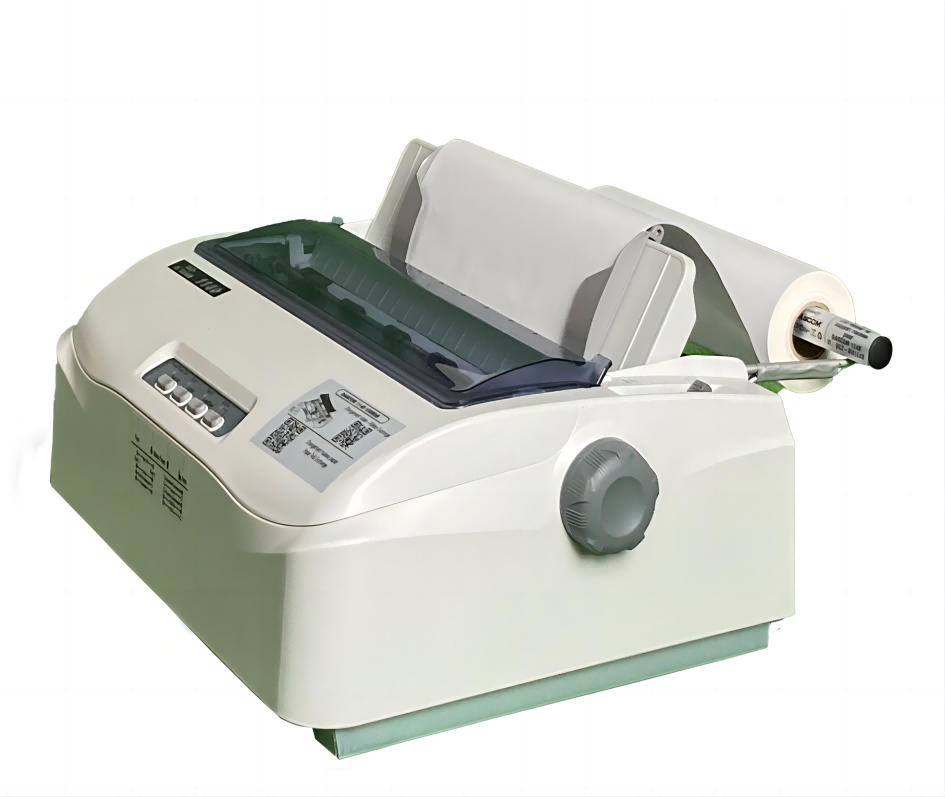

Based on the proven quality of the Tally Dascom 1140, the roll holder version is specially designed for roll paper applications that can be found on airports, railways and travel agencies.
1140 RH
80-column, advanced 9-pin
Up to 400 CPS speed
Solution designed for airport counters
Roll support clipped and attached to the printer
Excellent paper holding
Long life capacity ribbon
OVERVIEW
Fast and reliable
Based on the proven quality of the Tally Dascom 1140 the roll holder version is specially designed for roll paper applications that can be found on airports, railways and travel agencies.
Easy installation
The support has been designed to be set up by any user. The user just clips while being firmly fixed and connect the equipotential bonding to the printer chassis.User friendly operation
Made of metal, it will easily withstand rough handling by users and can works with roll up to 2 kilograms. When exchanging the paper roll the axle won't be lost as it is fixed to the mechanism.
Space saving
No additional footprint required as the roll holder is fixed on the printer. The back of the printer can be positioned at the edge of the desk and the roll media will not be affected. Users will be able to move the printer without worrying about the roll support because it is attached to the printer.The roll holder has been designed to be set up easily by any user. The user simply clips the sides down and it will be seated firmly fixed and connect the equipotential bonding to the printer chassis.
Made of metal, it will easily withstand rough handling by users and can works with paper roll that is up to 2 kilograms (4.4 lbs). When exchanging the paper roll, the axle won‘t be lost as it is fixed to the mechanism.
No additional footprint required as the roll holder is fixed on the printer. The back of the printer can be positioned at the edge of the desk and the roll media will not be affected. Users will be able to move the printer without worrying about the roll support because it is attached to the printer.
Parameter
Print Head
9 pins
Resolution
Up to 144 x 240 dpi
Print speed
Up to 400 characters per second (cps)
Print volume
Up to 6000 pages per month
Print head Life
Life 400 million strokes
Paper Type
Continuous paper rolls, mulit-part forms Max. roll diameter: 130 mm / 2 kg Min. core paper roll: 20 mm
Print copies
1 original and 4 copies
Paper Size
Width: 75 to 220 mm
Interfaces
USB 2.0
Emulations
IBM,Epson
Download
-
1140RH Driver for Windows
Windows 32/64bit driver for Tally Dascom 1xxx printers; MS certified for use with 7/8/8.1/10 11 and Server 2008-2016 ,2019, 2022 Package Aware; Version TD1xxxDriverSetup6.9(V6.9.0.0)
-
1140RH Quick Start Guide and Installation Guide
1140RH Quick Start Guide and Installation Guide
-
1140 RH Data sheet
CMT_1140RH_2024-08
