The new 1145 is designed to meet the requirements of high definition and cost-effective printing in the market. As such, a great deal of innovative technologies has been applied making it extremely competitive over its closest rivals. This entry level model is ideal for handling day-to-day front and back office tasks and impresses thanks to its compact dimensions and robustness. With the inclusion of BT and WiFi interfaces into the options line-up, this small footprint printer is able to complement well to semi mobile grocery stores which required to print sales documents on-the-go with paired handheld devices.
1145
80-column, advanced 24-pin
Up to 450 CPS speed
Up to 7-ply copy capability (original 1 + 6)
Wide range of optional interfaces

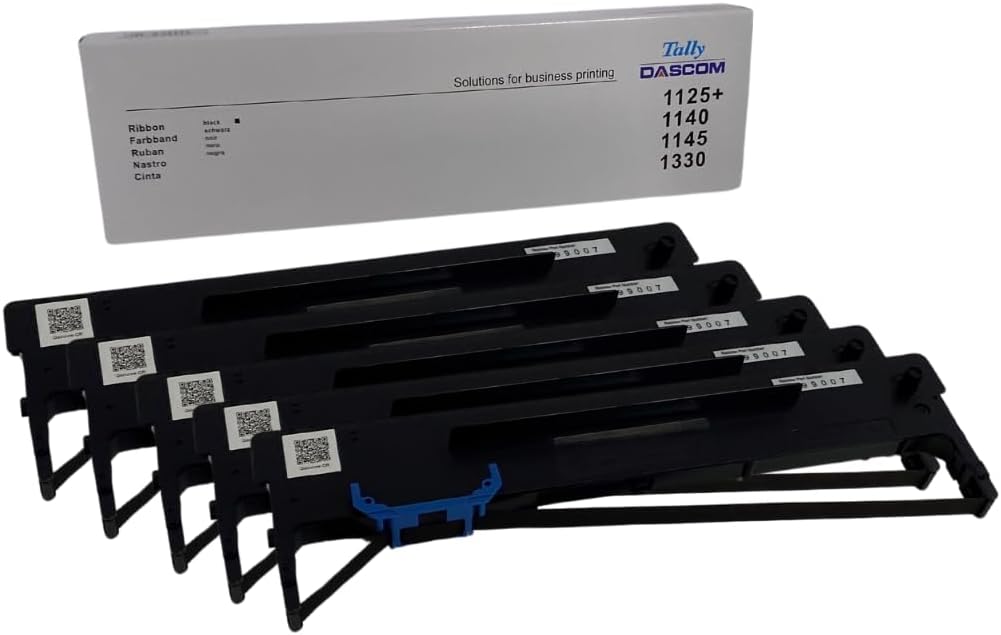

9 mil characters long life ribbon
OVERVIEW
Dascom 1145, is a 24 pin, 80 column serial dot matrix printer with a USB interface as standard. Compact in size, the 1145 is perfect for industrial environments and front and back office applications where space is limited. With low running costs, high quality output and an easy to use control panel it‘s ideal for small business, low volume listings and reports, as well as dispatch notes and labels.
In addition to these applications, the 1145 is also well suited to measurement and control systems. Among the lowest priced matrix printers available today, the 1145 also offers a long life ribbon giving this printer very low running costs. For draft printing it’s considerably less expensive operating costs make it a viable alternative to low end inkjet printers.
Parameter
Print Head
24 pins
Resolution
Up to 360 x 360 dpi
Print speed
Up to 450 characters per second (cps)
Print volume
Up to 6000 pages per month
Print head Life
Life 400 million strokes
Paper Type
Cut sheets, continuous forms, mulit-part forms
Print copies
1 original and 6 copies
Paper Size
Width: 95 to 267 mm Length: 114 to 362 mm (Cut sheet); 114 to 558 mm (Fanfold
Interfaces
USB 2.0
Emulations
IBM,Epson
Download
-
1145 Data sheet
CMT_1145_2024-09
-
1145 User Guide EN
1145 User Guide _V14_20240829
-
1140 / 1145 Quick Start Guide and Installation Guide
Quick Start Guide and Installation Guide
-
1145 Ethernet Board Firmware
Ethernet FW for TD 1145/1125+, 1140 and 1330 Ethernet Board. Version: v00.0F.00.00
-
1145 Firmware
Firmware for 24 pin dot matrix printer 1145 ;Version: 20.05.00.00 ;For UCL 1 and higher
-
1145 Tally Dascom Config Tool
Setup and configuration tool V1.0.50
-
1145 Driver for Windows
Windows 32/64bit driver for Tally Dascom 1xxx printers; MS certified for use with 7/8/8.1/10 11 and Server 2008-2016 ,2019, 2022 Package Aware; Version 6.9
