Thermal label printer 2" ,Wristband Label Printer
DL-2210
Small footprint
Easy and quick media loading
user friendly
large-capacity paper tray
No waste when printing the first page
OVERVIEW
Wristband Printer: Smart Printing, Effortless Efficiency!
Perfect compatibility, Under the Windows system easy realization each kind of label design and the
printing, It is the best scheme to improve the efficiency of label users.- Structure design of upper tearing paper, Can correspond to very narrow label tear paper, Respect the
user's usage, More convenient to use.
white design, which is more suitable for hospital.
In view of the particularity of each HIS system and wristband printing, the adjustment range of the tearing position and the printing position has been greatly increased from the original ±30mm to ±200mm, which meets the requirements of various scenarios.
For some HIS using horizontal template for wristband design, the driver adds the wristband automatic rotation function, when the template width exceeds 50mm, the driver will automatically rotate the wristband data.

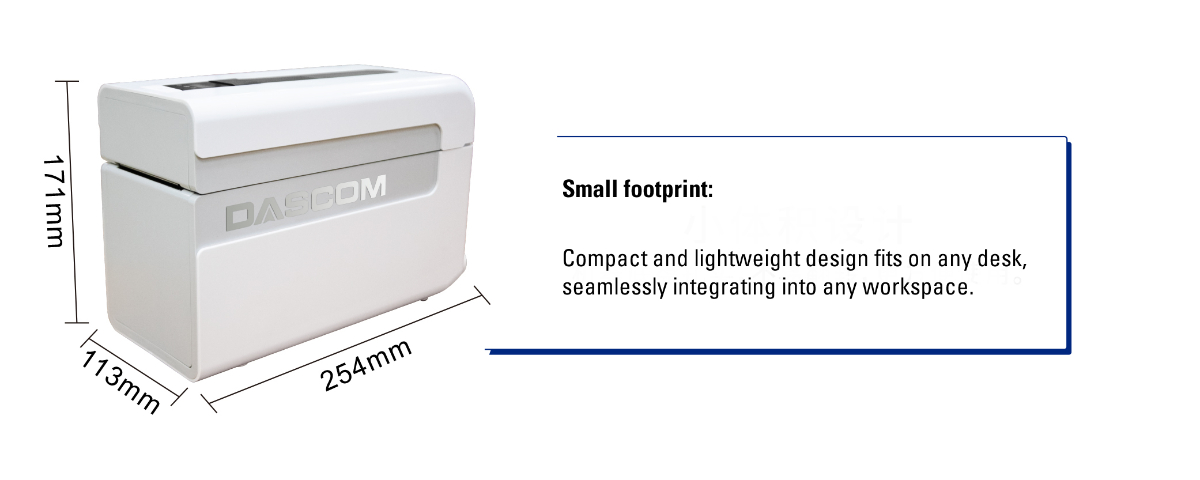

Small footprint, 254*113*171mm, solid machine chassis, not easy to flip, more convenient to use for the end-user.

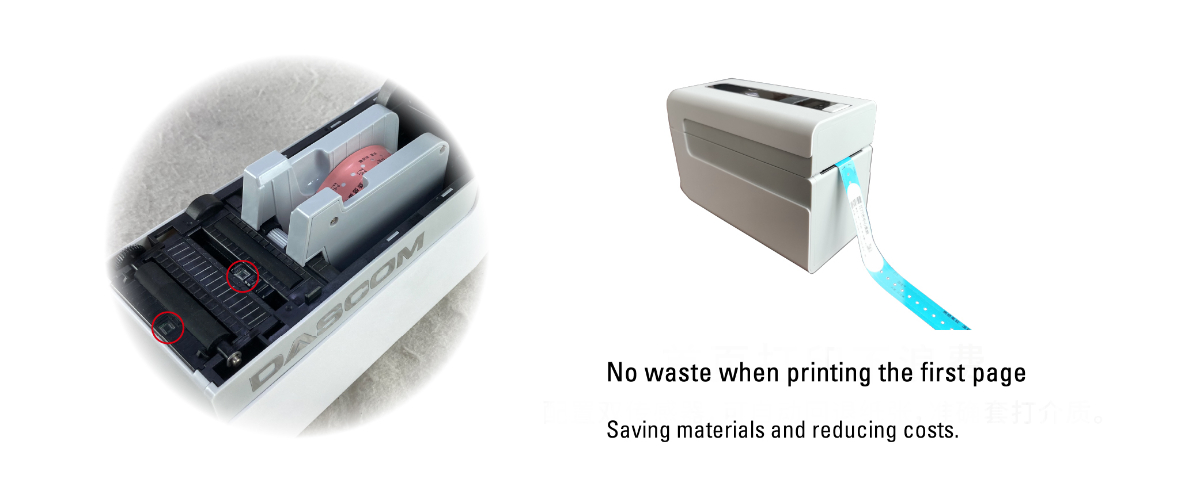

The device features a dual sensor structure design, enabling automatic paper retraction and tearing after loading. This ensures the precise positioning for the first print. Users are no longer required to manually locate or adjust the medium - simply click to print, and the system delivers accurate printing results.
Parameter
Printing Specifications
Printing Method: Direct thermal.
Printing Resolution: 203 dpi (8 dots per mm).
Printing Speed: Max.6inch/s(152mm/s)
Printing Width: Max 56mm
Paper width: Max 60mm
Simulation: ZPL, EPL, TSPL
Fonts/Characters/Bar Codes
Built-infont library
GB18030 font library, ASCII font library
Built-in barcode
One-dimensional bar code, QR code
Connectivity
Standard : USB 2.0 .
Options:
Dual-mode BT 4.0, IEEE 802.11 b/g/n WIFI,Ethernet port choose one of three
Software
Driver and Configuration Tool :Windows Vista/XP/7/8/8.1/10/11(32bit/64bit)
SDK :Android, IOS
DEMO’S :Android, IOS
Print Media
Type :Thermal web (continuous paper, label paper, Black Label Paper), thermal folding paper Direction of heat sensitive surface :Outer
Thickness :0.08~0.3mm
Inner diameter of coil core : No restrictions
Outside diameter of paper roll : 127mm
Sensor Management
Standard sensors :Open sensor,paper sensor, label sensor,Paper
Tear sensor,Black mark sensor
Physical Specifications
Dimensions :254*113*171mm
Weight :About 1.7 kg
Environmental Specifications
Operating condition :5~40℃ / 30~80%RH(non-condensing)
Storage condition :-10~50℃ / 10~90%RH(non-condensing)
Operator Controls and Indicators
LED indicator Three LED lights(green,red,red)
Key Only One key:Feed Buzzer None
Memory Capacity
Memory SDRAM :32M Flash :8M
Receive buffer :256K bytes
Paper Feeding method
Web,rear folding paper,external support into thepaper,external support intothe paper
Regulatory Approvals
CE,CCC
Options and Accessories
Cutter(for receipt, label and wristband), peeler
