This entry level model is ideal for handling day-to-day front and back office tasks and this small footprint printer is able to complement well to retail market
1120
Compact 18-pin flatbed printer
Up to 375 characters per second
Ideal for front and back office applications
Variety of interfaces
Small footprint
×
OVERVIEW

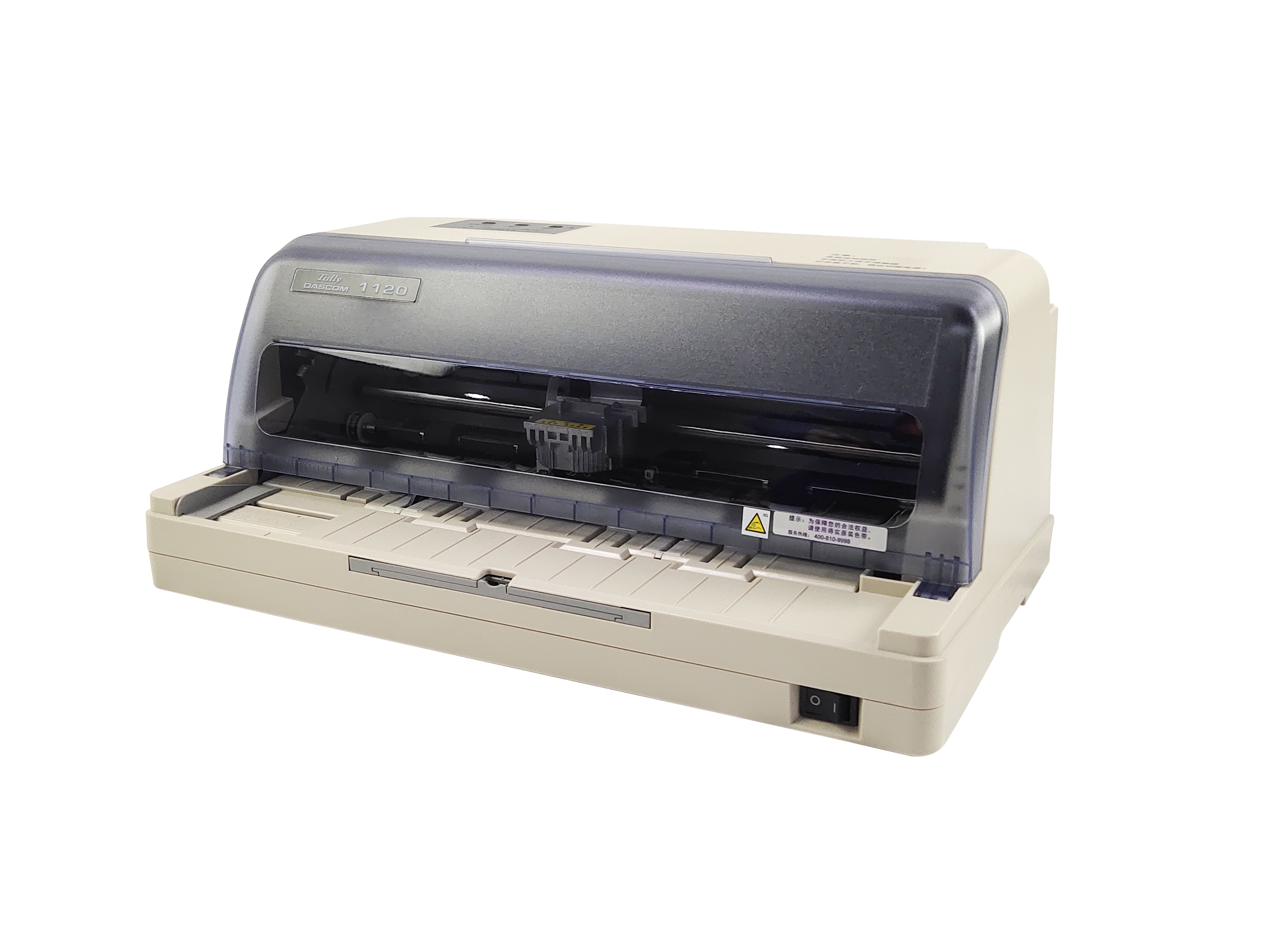

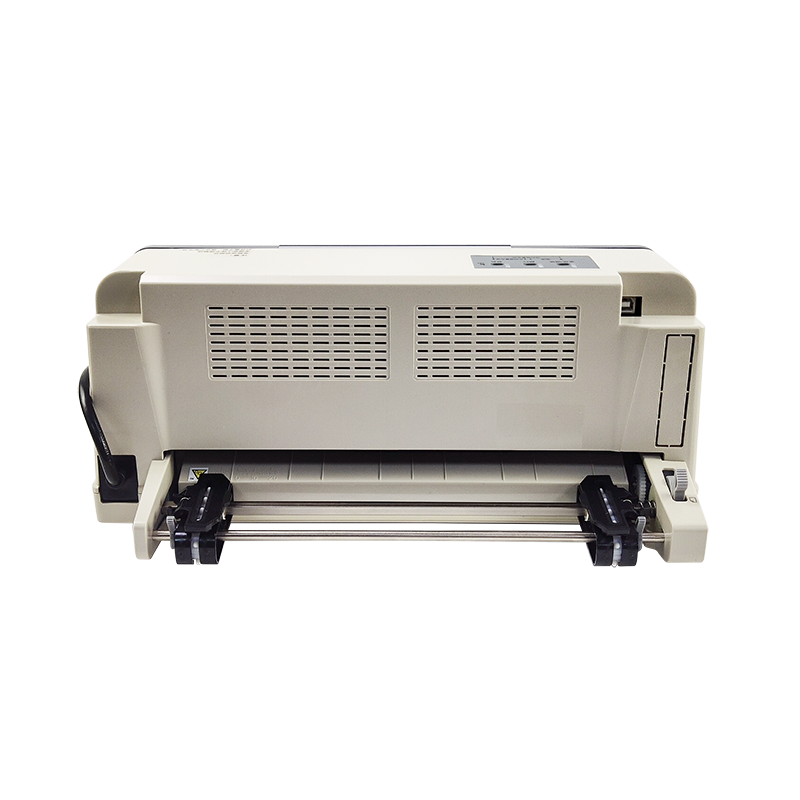

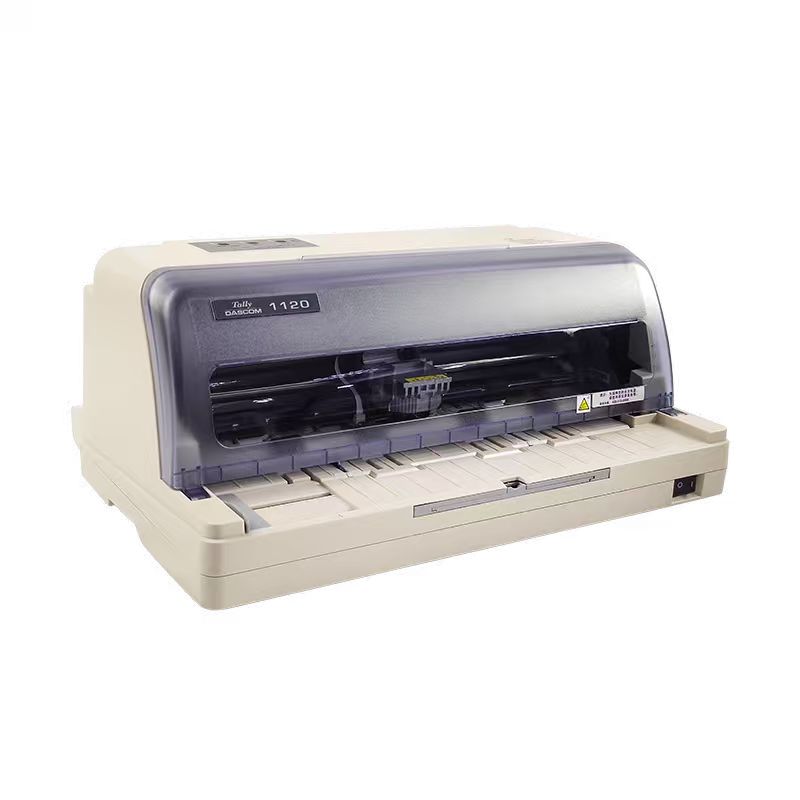

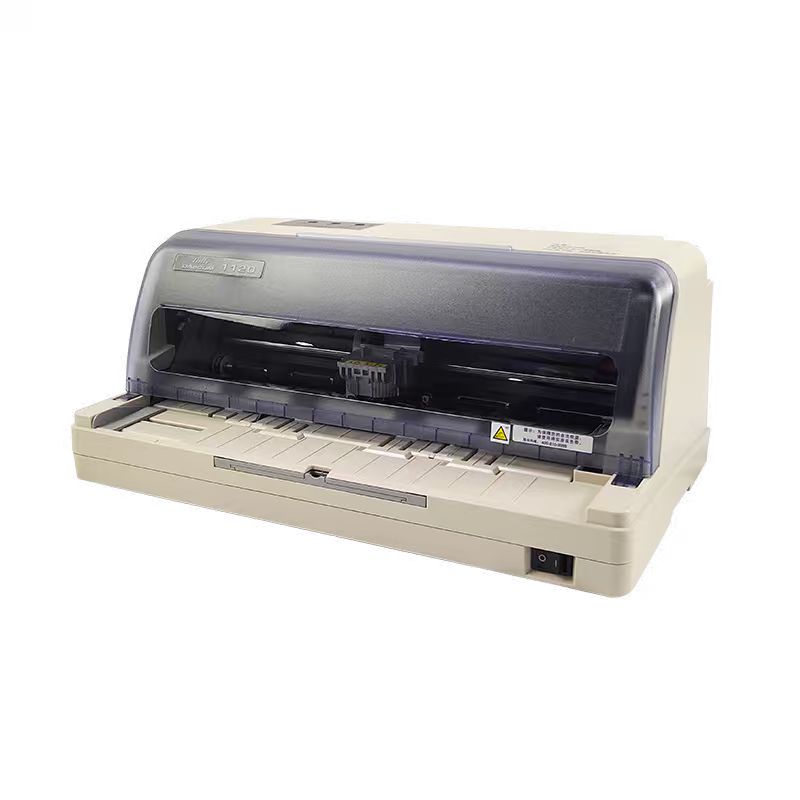

The Tally Dascom 1120 is a 18 pin serial dot matrix printer with USB interfaces as standard. Compact in size, the 1120
is perfect for industrial environments and front and back office applications where space is limited. With low running
costs, high quality output and an easy to use control panel it‘s ideal for small business, low volume listings and reports,
as well as dispatch notes and labels.
In addition to these applications, the 1120 is also well suited to measurement and control systems. Amongst the
lowest priced matrix printers available today the 1120 also offers an easy to exchange ribbon. For draft printing it’s
considerably less expensive running costs make it a viable alternative to low cost ink-jet printers
Parameter
Print Head
18 pins
Resolution
Up to 360x 180 dpi
Print speed
Up to 375 characters per second (cps)
Print volume
Up to 6000 pages per month
Print head Life
Life 400 million strokes
Paper Type
Cut sheets, continuous forms, mulit-part forms
Print copies
1 original and copies
Paper Size
Cut sheet:Width: 95 to 267 mm Length: 114 to 362 mm ; Fanfold paper:Width; 42 - 243 mm,Length: min. 76 mm
Interfaces
USB 2.0
Emulations
IBM ProPrinter, Epson ESC P/2
Download
-
1120 Datasheet
CMT_1120_2025-04.pdf
-
1120 Quick Start Guide and Installation Guide
1120 Quick Start Guide and Installation Guide20250401
-
1120 User Guide
1120 User Guide.pdf
-
1120 Firmware
1120 Firmware VDG11CDSv30.00.00.1C
-
1120 Driver for Windows
Windows 32/64bit driver for Tally Dascom 1xxx printers; MS certified for use with 7/8/8.1/10 11 and Server 2008-2016 ,2019, 2022 Package Aware; Version :TD1xxxDriverSetup6.12.0.zip
