The 2820 printers are rugged and powerful high speed matrix printers for heavy duty operation under the most extreme conditions. Reliable, heavy workload output is guaranteed for many years following printer purchase. The print is crisp, sharp, dark and absolutely legible, thanks to the 24 pin print head.
2820
136-column, advanced 24-pin
Up to 1000 CPS speed
Up to 50,000 pages per month

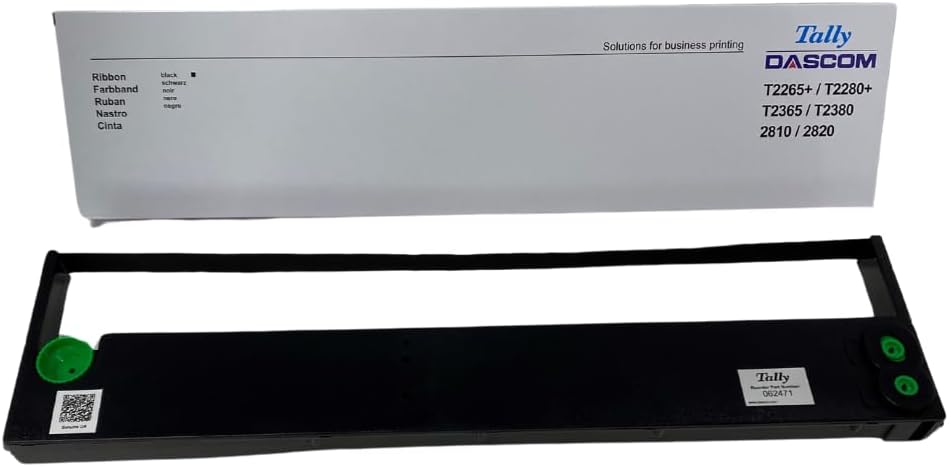

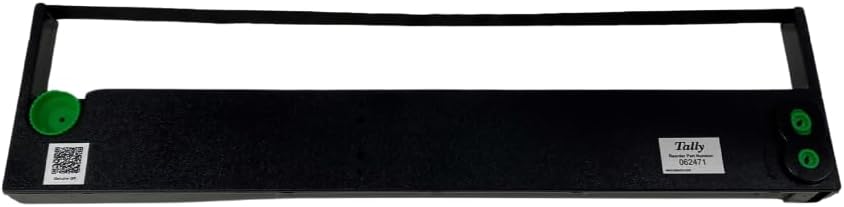

20 mil characters long life ribbon
Long-life, heavy duty print head for crisp, clear print
Ethernet interface with IPv4 & IPv6 support
OVERVIEW
Meticulously engineered for peak performance, the brand new 2820 offers exceptional print speed, throughput, and workload capability for heavy duty operation in demanding environments. This reliable and sturdy built model is a real workhorse that has been specially developed for use in the industrial sector, offering excellent values in terms of user handling and lower operation costs is guaranteed for many years following printer purchase. As intuitive as it is tough, this model is also easy to use and its automated features designed so user intervention is minimized, to limit the potential for human error during operation.
Parameter
Print Head
24 pins
Resolution
Up to 360 x 360 dpi
Print speed
Up to 1000 characters per second (cps)
Print volume
Up to 50000 pages per month
Print head Life
Life 750 million strokes
Paper Type
Continuous forms, multi-part forms
Print copies
Push tractor front: 1 original + 6 copies
Paper Size
Width: 76 to 420 mm; Length: 76 to 559 mm
Interfaces
1 x parallel, 1 x USB, 1 x ethernet
Emulations
IBM,Epson,MTPL
Download
-
2820 Data sheet
Update at Aug 2024
-
2820 Windows V3 Standard Printer Driver
For Windows Vista Windows 7 / 8 / 8.1 / 10, Server 2008 - 2016, 2019 (32/64bit) ; Previous driver architecture from Microsoft MS certified and Package Aware; Internal printer font will be supported
-
User Guide 2820 - English
2820 User Guide-20240829
-
Quick Start Guide 2820 - English
-
Quick Start Guide 2820 - Deutsch
-
Quick Start Guide 2820 - French
-
Quick Start Guide 2820 - Italian
-
Quick Start Guide 2820 - Portuguese
-
Quick Start Guide 2820 - Spanish
-
2820 Epson FX Emulation Firmware
Version: 380756, Index: A
-
2820 Firmware
Version: 70548, Index: D ;Standard Firmware for 2810, 2820
-
2820 Windows V4 Standard Printer Driver
For Windows 8 / 8.1 / 10 / 11, Server 2012 and 2016 / 2019 / 2022 (32/64bit) New, prospective driver architecture from Microsoft Note: Improves printing of thin lines; Internal printer font will be not supported - only Windows fonts
